Description

DJI Zenmuse H20 ราคา 121,440 บาท (ชุดกล้องแบบไม่มีกล้องตรวจจับความร้อน)

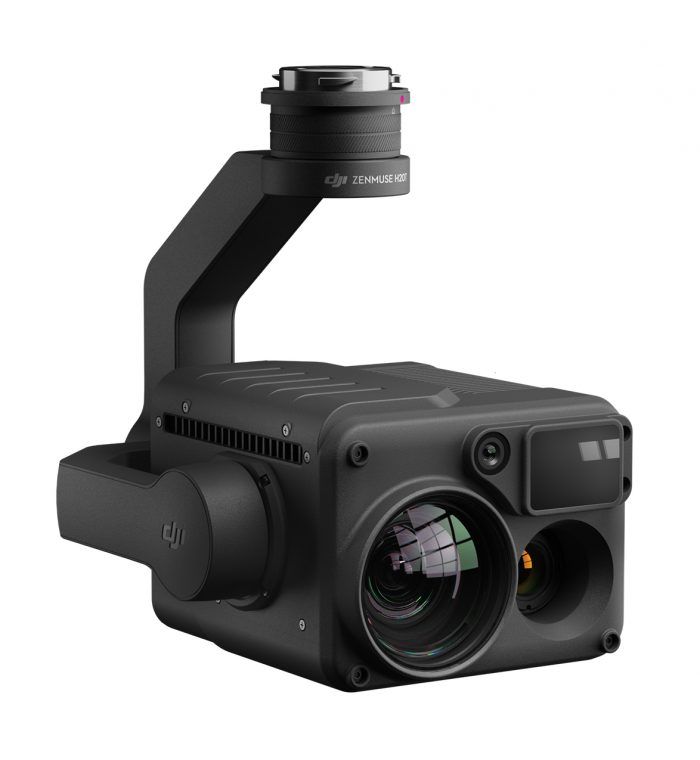

DJI Zenmuse H20T ราคา 323,730 บาท  (ชุดกล้องพร้อมกล้อง Thermal/กล้องตรวจจับความร้อน – รุ่นแนะนำ)

โทร 084-979-9442
Line ID : @toonocean

General

  • Weight

  • Zenmuse H20: 678±5 g
    Zenmuse H20T: 828±5 g
  • Dimensions

  • Zenmuse H20: 150×114×151 mm
    Zenmuse H20T: 167×135×161 mm
  • Ingress Protection Rating

  • IP44
  • Operating Temperature

  • -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)
  • Storage Temperature

  • -20° to 60° C
  • Laser Safety

  • Class 1M (IEC 60825-1:2014)
  • Supported Aircraft

  • Matrice 300 RTK

Gimbal

  • Angular Vibration Range

  • ±0.01°
  • Mount

  • Detachable
  • Controllable Range

  • Pitch: -120° to +30°
    Yaw: ±320°
  • Mechanical Range

  • Pitch: -132.5° to +42.5°
    Yaw: ±330°
    Roll: -90° to +60°

Zoom Camera

  • Sensor

  • 1/1.7″ CMOS, 20 MP
  • Lens

  • DFOV: 66.6°-4°
    Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
    Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
    Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
  • Focus Mode

  • MF/AF-C/AF-S
  • Exposure Mode

  • Auto, Manual
  • Exposure Compensation

  • ±3.0 (1/3 increments)
  • Metering Mode

  • Spot metering, Center-weighted metering
  • AE LOCK

  • Supported
  • Electronic Shutter Speed

  • 1 ~ 1/8000 s
  • ISO Range

  • Video: 100 – 25600
    Photo: 100 – 25600
  • Video Resolution

  • 3840×2160@30fps, 1920×1080@30fps
  • Video Format

  • MP4
  • Video subtitles

  • Supported
  • Photo Size

  • 5184 × 3888
  • Photo Format

  • JPEG

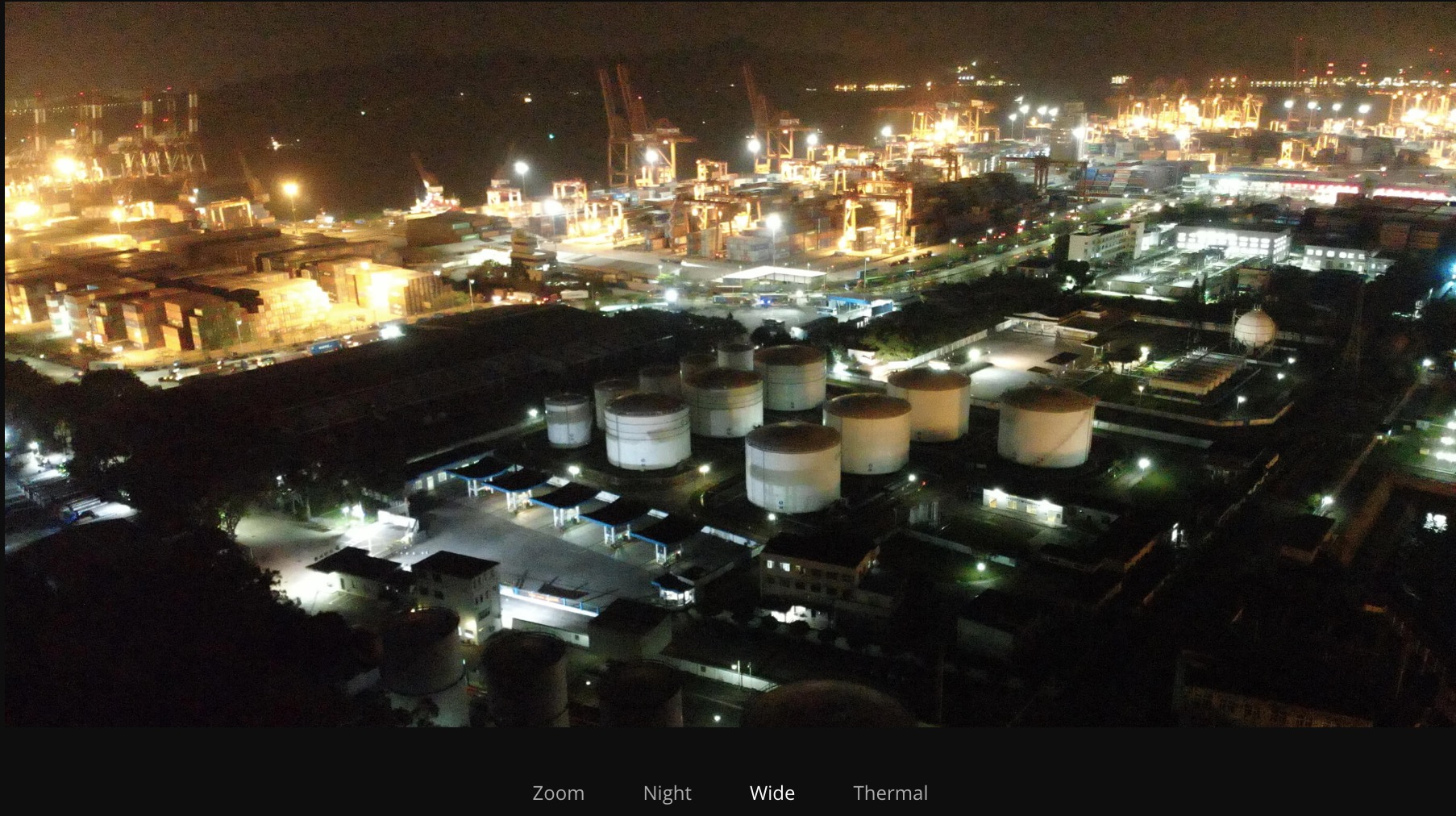

Wide Camera

  • Sensor

  • 1/2.3″ CMOS, 12 MP
  • Lens

  • DFOV: 82.9°
    Focal length: 4.5 mm (equivalent: 24 mm)
    Aperture: f/2.8
    Focus: 1 m to ∞
  • Exposure Mode

  • Auto
  • Exposure Compensation

  • ±3.0 (1/3 increments)
  • Metering Mode

  • Spot metering, Center-weighted metering
  • AE LOCK

  • Supported
  • Shutter Speed

  • 1 ~ 1/8000
  • ISO Range

  • Video: 100 – 25600
    Photo: 100 – 25600
  • Video Resolution

  • 1920×1080@30fps
  • Video Format

  • MP4
  • Video subtitles

  • Supported
  • Photo Size

  • 4056 x 3040
  • Photo Format

  • JPEG

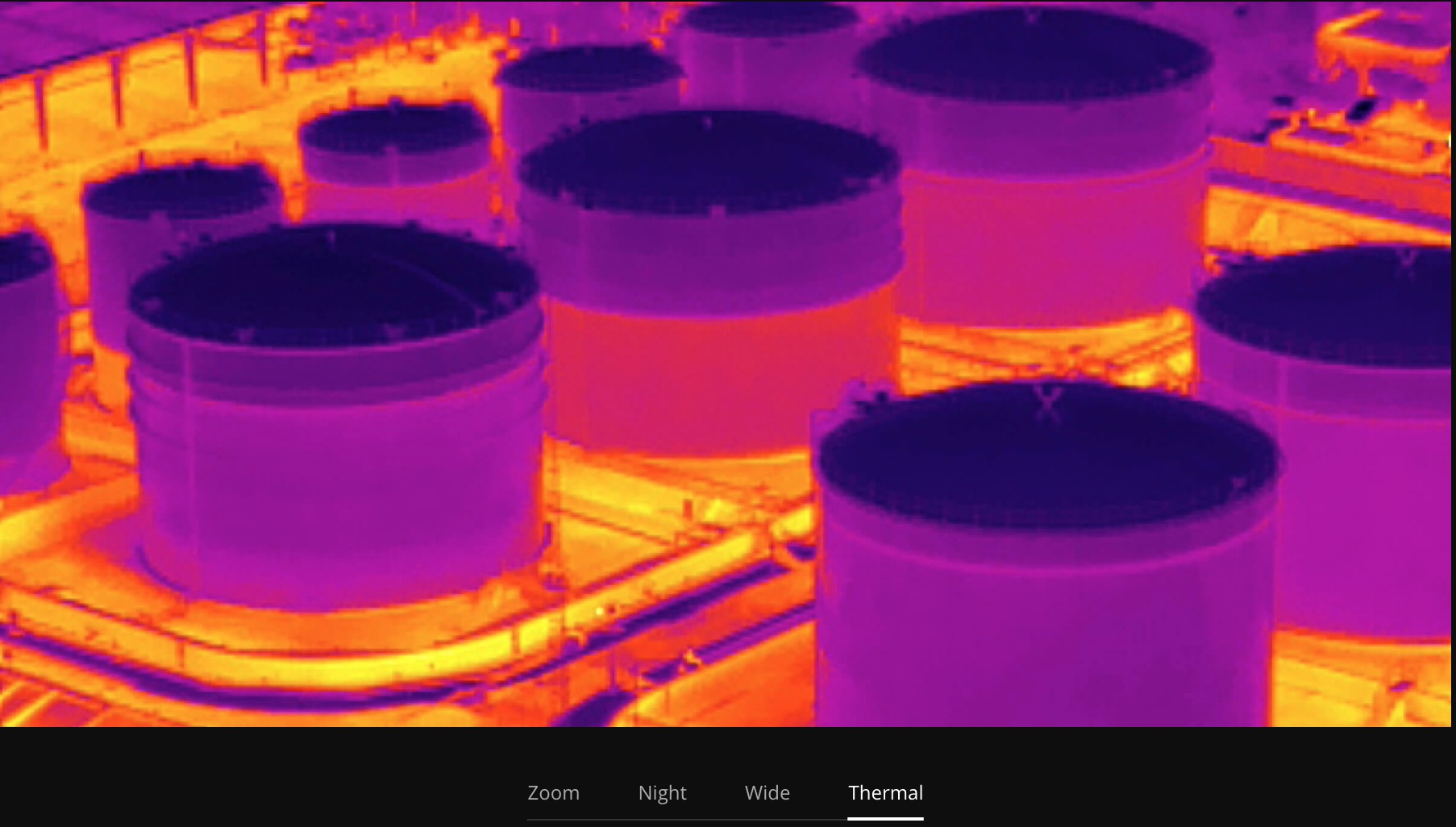

Thermal Camera (Zenmuse H20T)

  • Sensor

  • Uncooled VOx Microbolometer
  • Lens

  • DFOV: 40.6°
    Focal length: 13.5 mm (equivalent: 58 mm)
    Aperture: f/1.0
    Focus: 5 m to ∞
  • Digital Zoom

  • 1x, 2x, 4x, 8x
  • Video Resolution

  • 640×512 @ 30 Hz
  • Video Format

  • MP4
  • Image Resolution

  • 640×512
  • Image Format

  • R-JPEG (16 bit)
  • Pixel Pitch

  • 12 μm
  • Spectral Band

  • 8-14 μm
  • Sensitivity (NETD)

  • ≤50 mK @ f/1.0

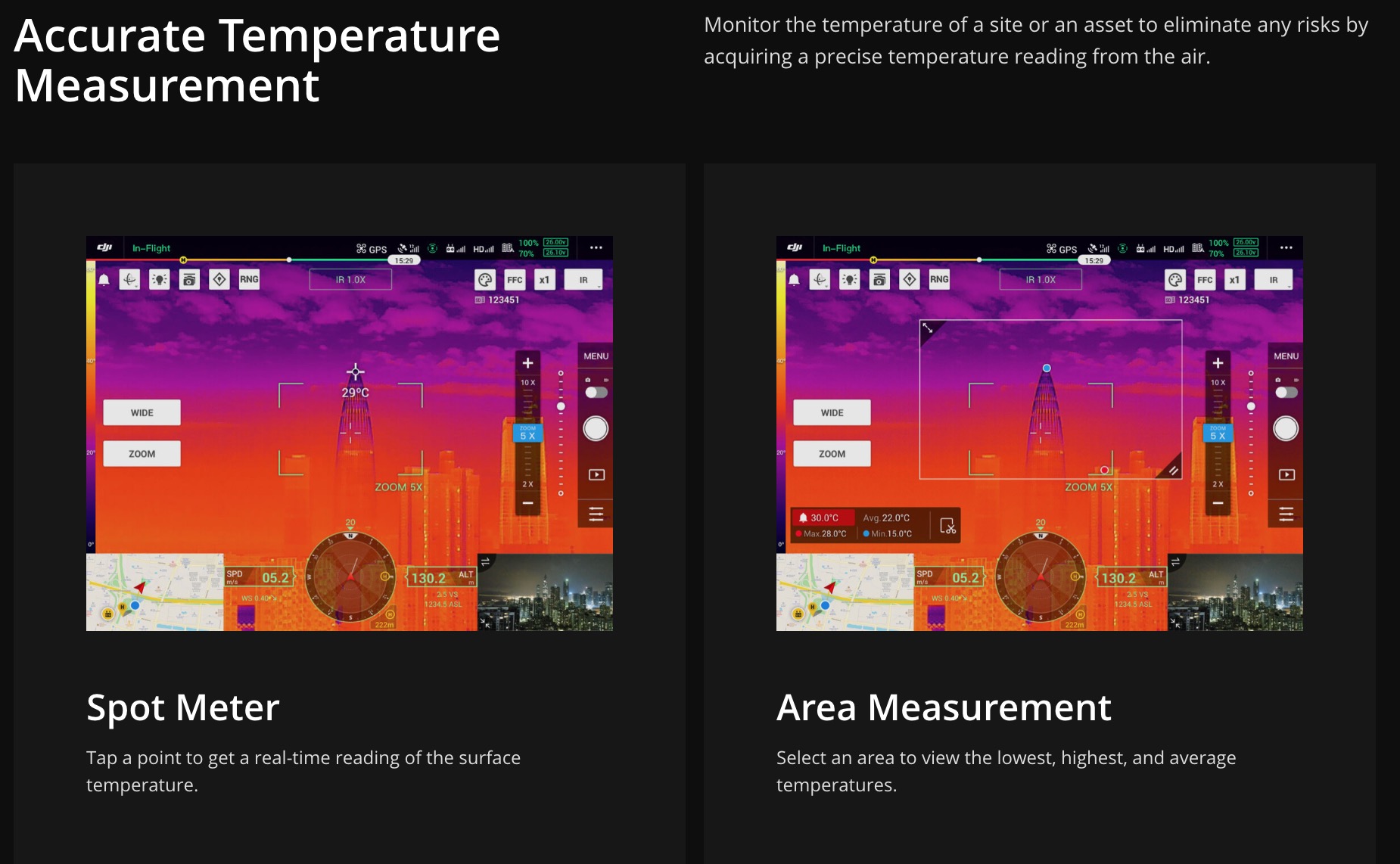

  • Temperature Measurement Method

  • Spot Meter, Area Measurement
  • Scene Range

  • -40 °C to 150 °C (High Gain)
    -40 °C to 550 °C (Low Gain)

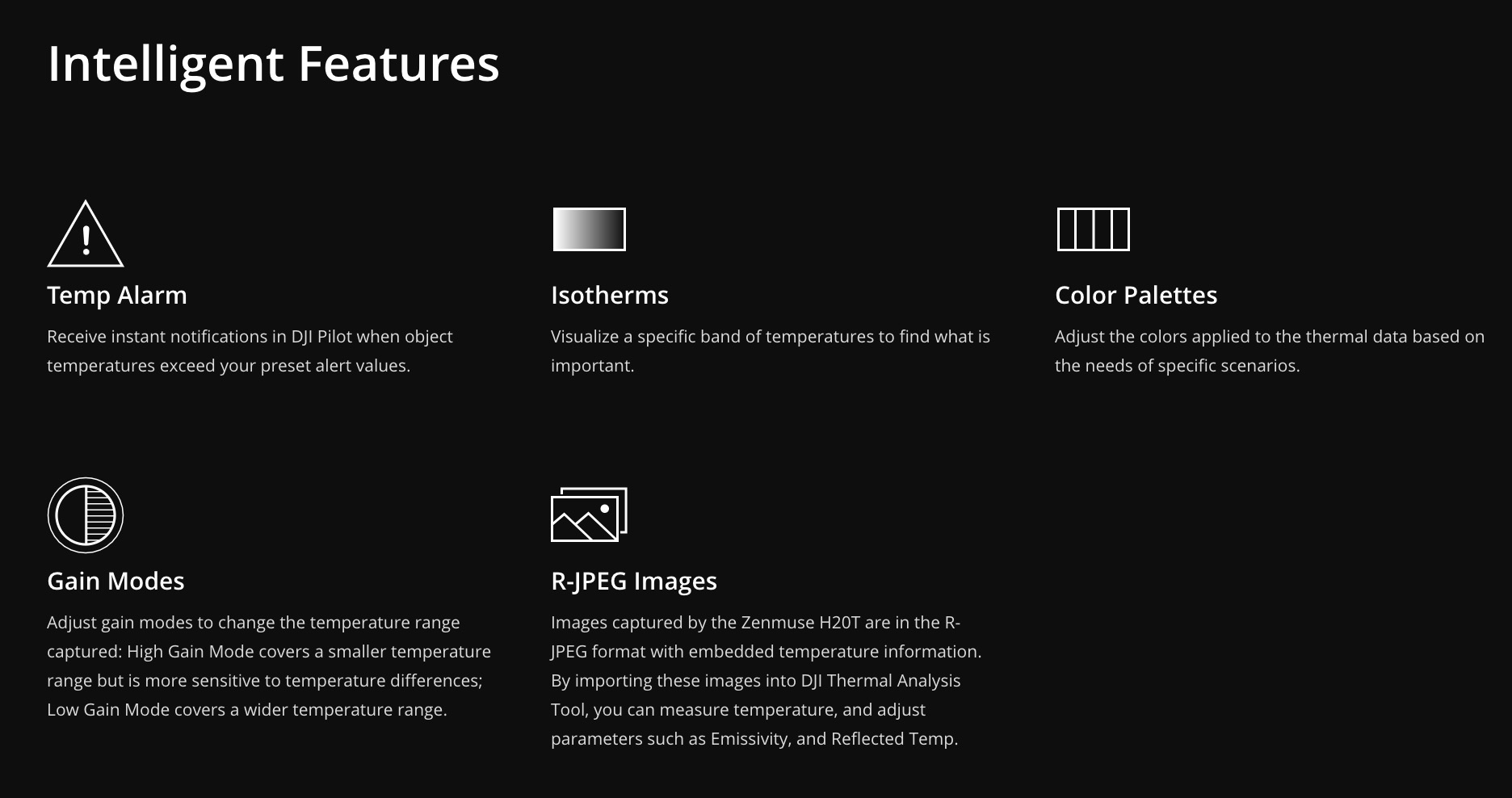

  • Temperature alert

  • Supported
  • FFC

  • Auto/ manual
  • Palette

  • White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Rangefinder

  • Wave length

  • 905 nm
  • Measurement range

  • 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
  • Measurement accuracy

  • ± (0.2 m + D×0.15%)
    D is the distance to a vertical surface

Features

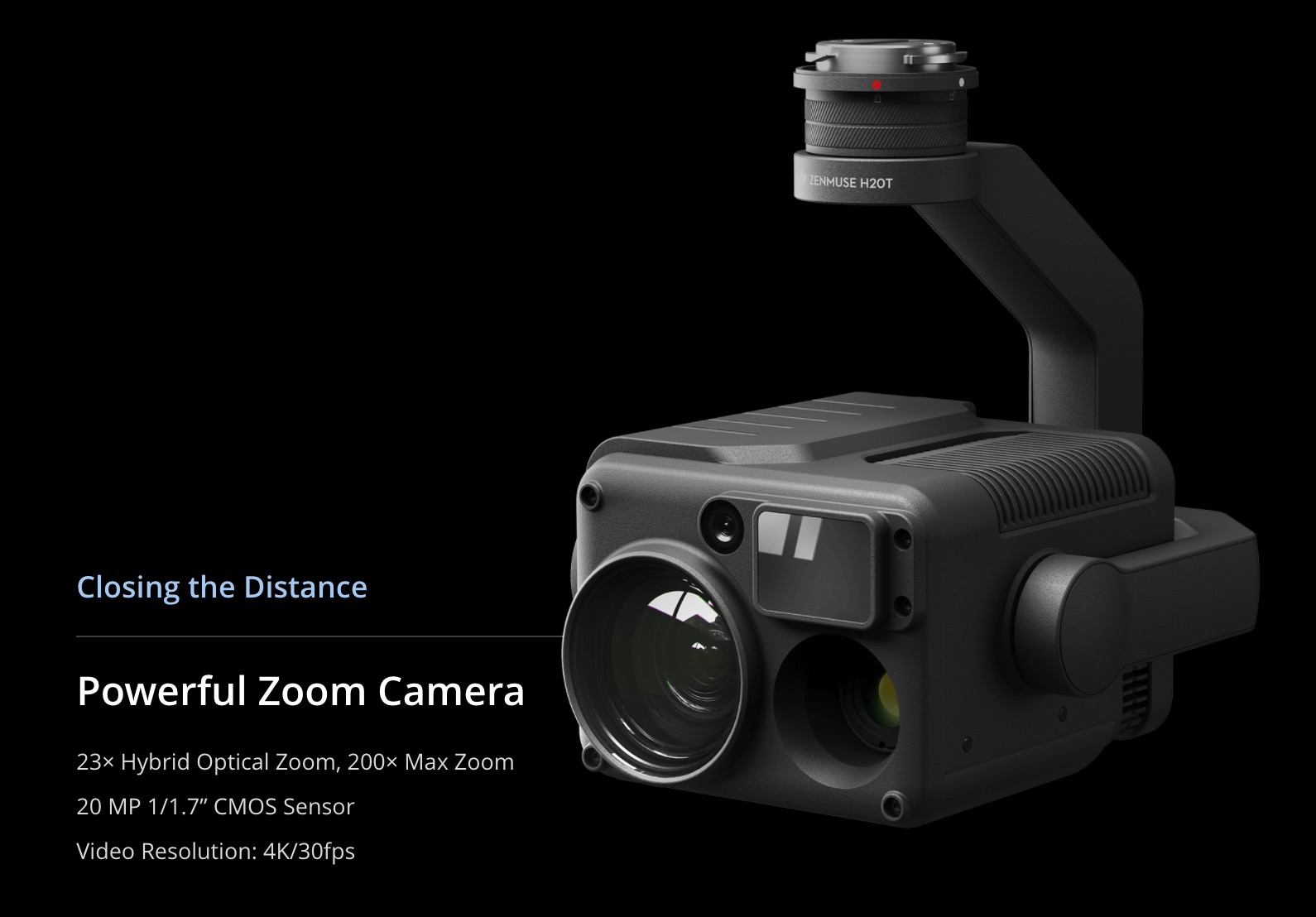

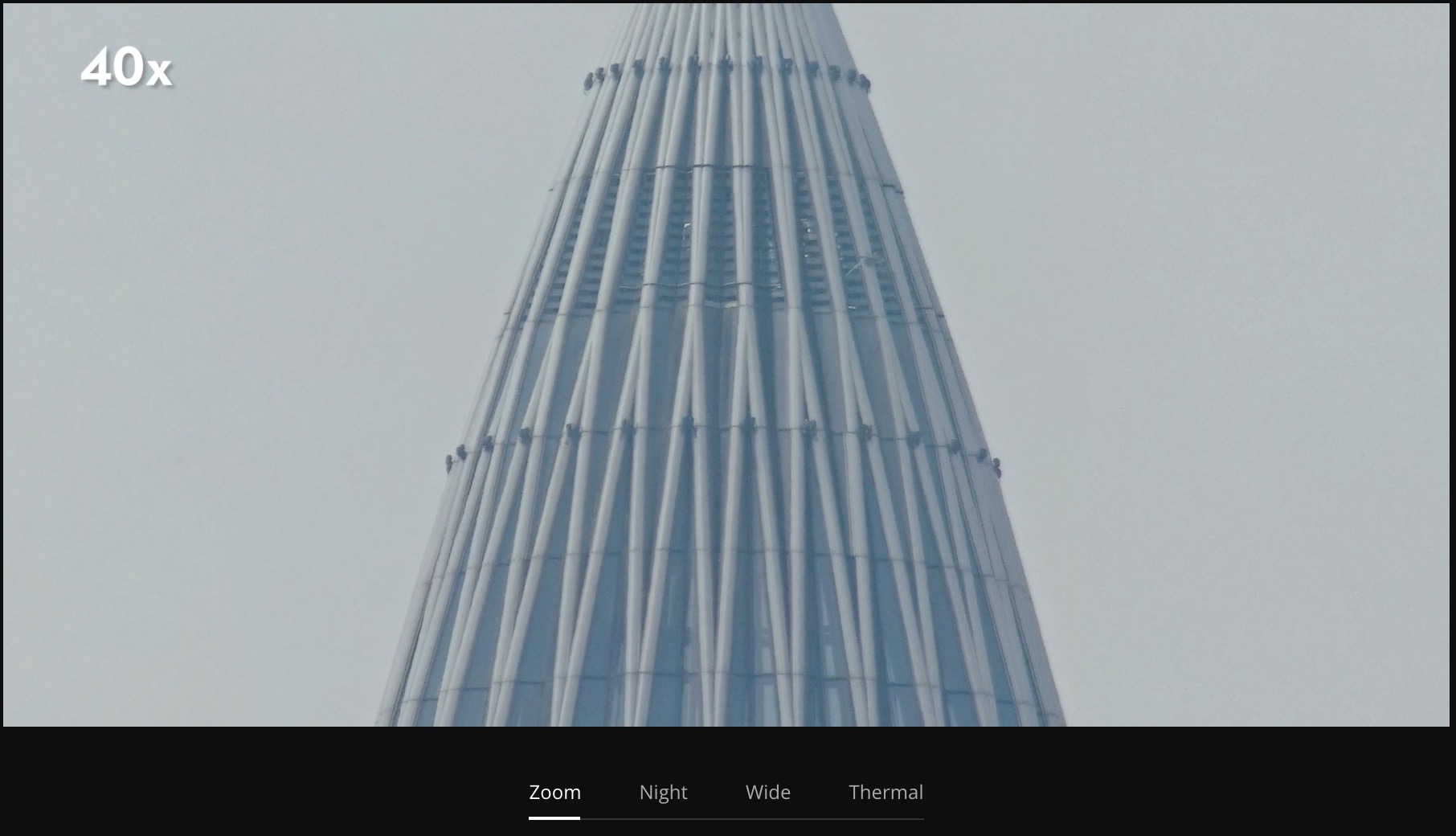

  • Hybrid Optical Zoom

  • 23×(DFOV:4°,EQV:556.2mm)
  • Max. Zoom

  • 200×(DFOV:0.5°,EQV:4800mm)
  • One Click Capture

  • One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
  • Point to Aim

  • Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest

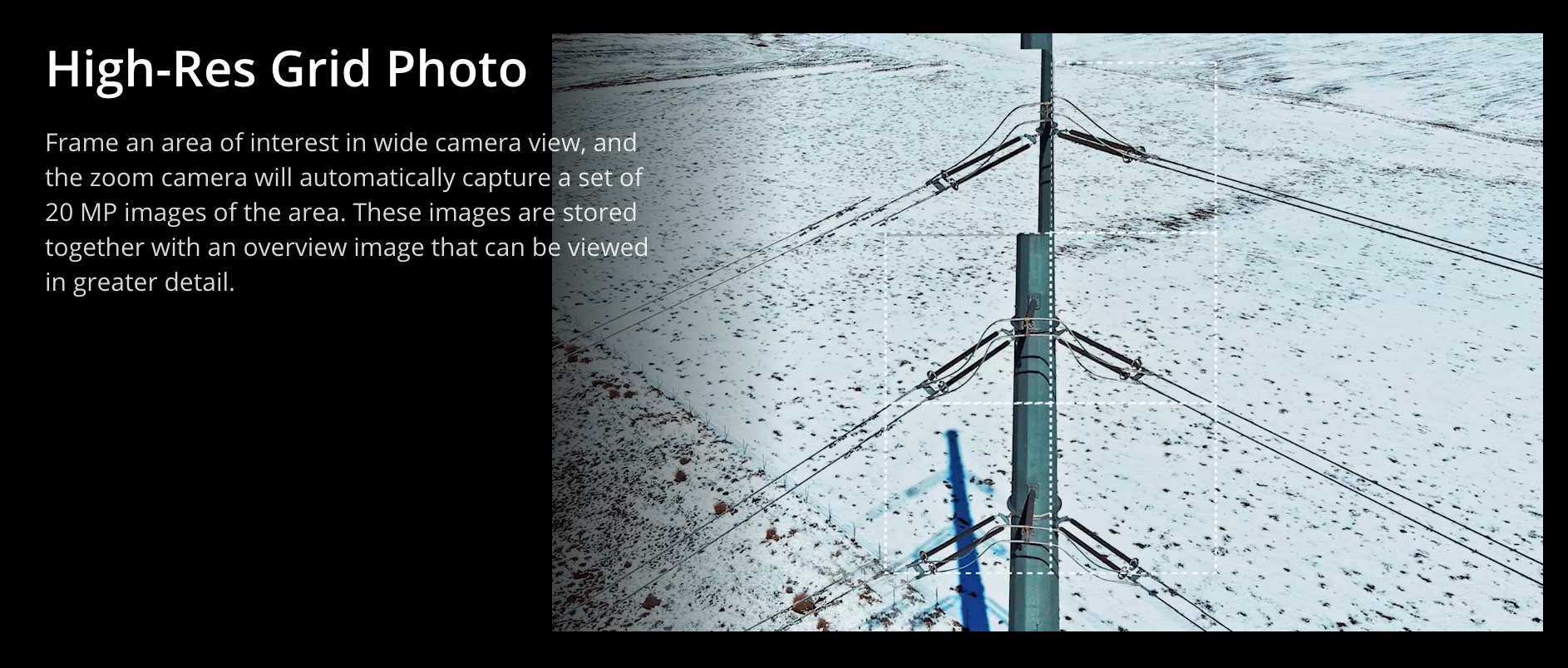

  • High-Res Grid Photo

  • Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

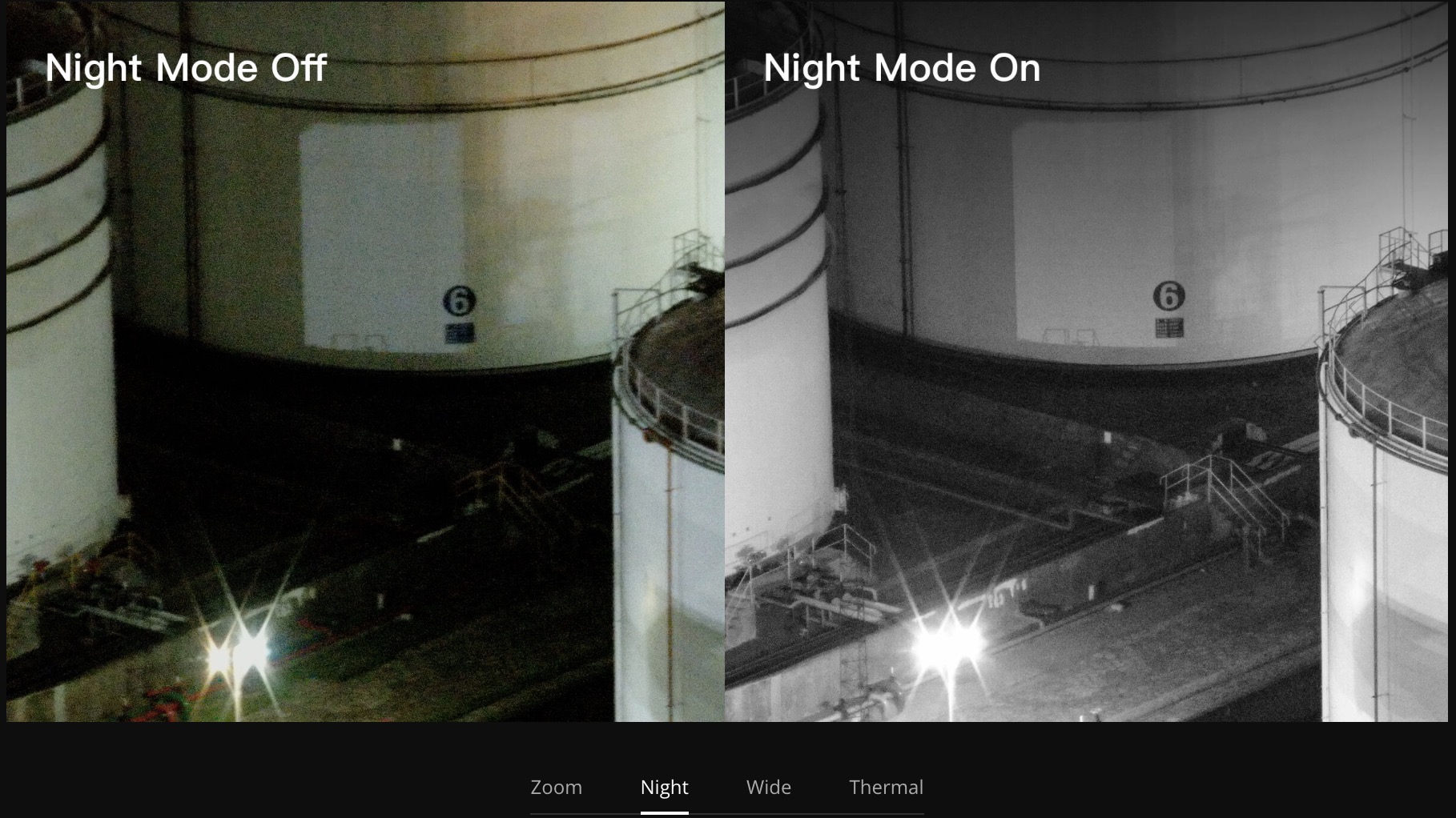

  • Night Scene

  • Supported (zoom camera)
  • Timestamp

  • Including GPS, date, and time

Storage

  • Supported SD Card

  • MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
  • Supported File Systems

  • FAT32 (≤ 32 GB), exFAT (> 32 GB)
  • Recommended Micro SD Cards

  • TOSHIBA EXCERIA PRO 32GB micro SD HC II
    SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I
    TOSHIBA EXCERIA PRO 64GB micro SD XC II
    SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I
    SAMSUNG_EVO_128GB_micro SD 3 XC I
    TOSHIBA EXCERIA M303E 32GB micro SD HC I
    TOSHIBA EXCERIA M303E 64GB micro SD XC I
    TOSHIBA EXCERIA M303E 64GB micro SD XC I
    TOSHIBA EXCERIA M303 128GB micro SD XC I
    SAMSUNG_EVO_64GB_micro SD 3 XC I

กล้องสำหรับโดรน DJI Matrice 300 RTK (DJI M300)
